POC Series — Fanless Computers
POC-40
Extreme-compact fanless embedded computer

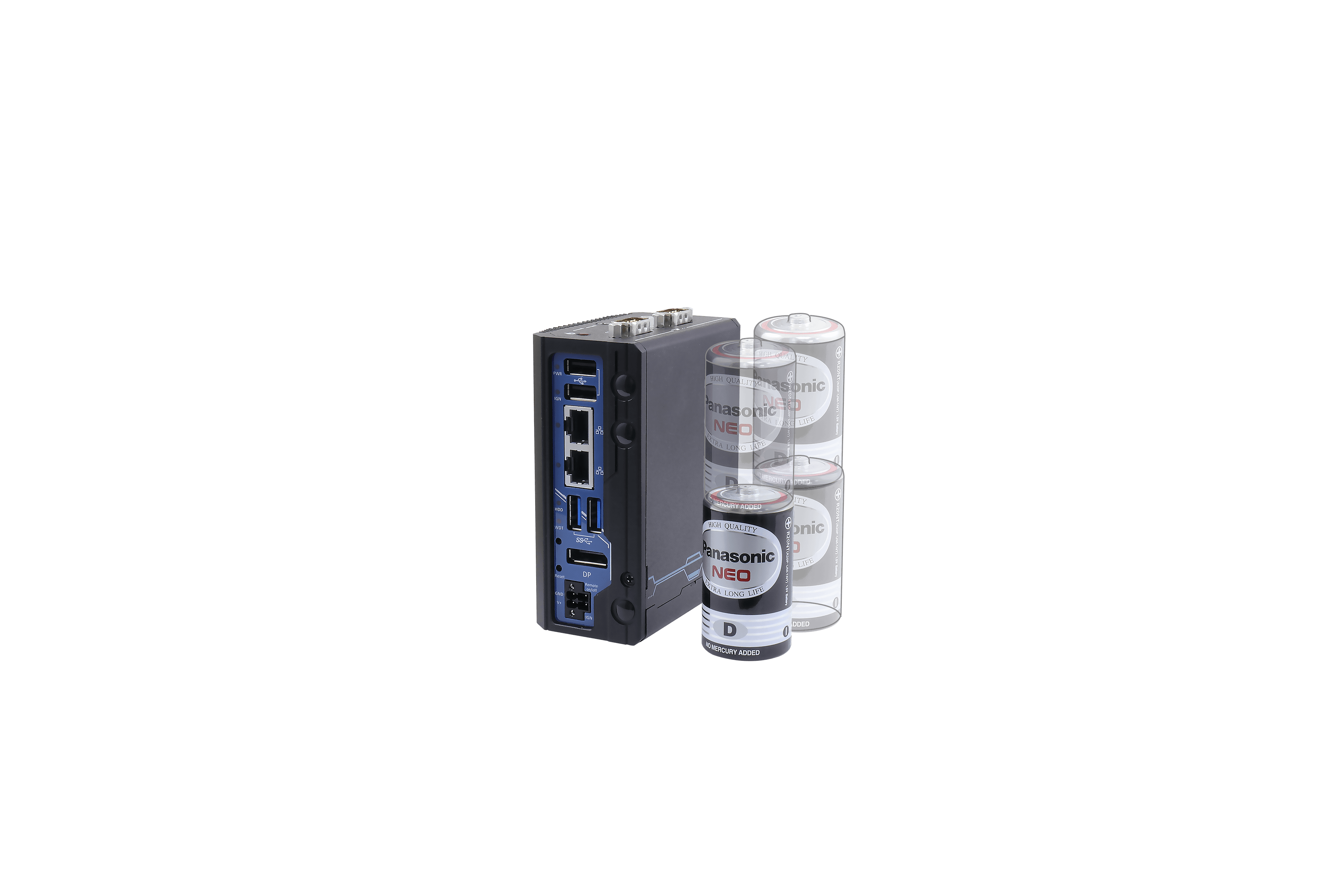

About the size of a PICO-ITX board, POC-40 packs a full fanless PC into a footprint small enough for space-restricted panels and cabinets — factory data collection, compact edge computing, and mobile gateway duty. Also available as POC-40-DIO (8-ch isolated DIO), POC-40-IGN (ignition power control), and POC-40+ (faster x6413E CPU with an isolated RS-422/485 port and mini-PCIe instead of the M.2 B-key slot).
Specifications
| Processor | Intel Atom x6211E dual-core 1.3/3.0GHz (x6413E quad-core on POC-40+) |
|---|---|
| Graphics | Integrated Intel UHD Graphics |
| Memory | Up to 32GB DDR4-3200 (1x SODIMM) |
| Ethernet | 2x Gigabit Ethernet (Intel I210) |
| USB | 2x USB 3.1 Gen1, 2x USB 2.0 |
| Video output | 1x DisplayPort, up to 4096x2160 @ 60Hz |

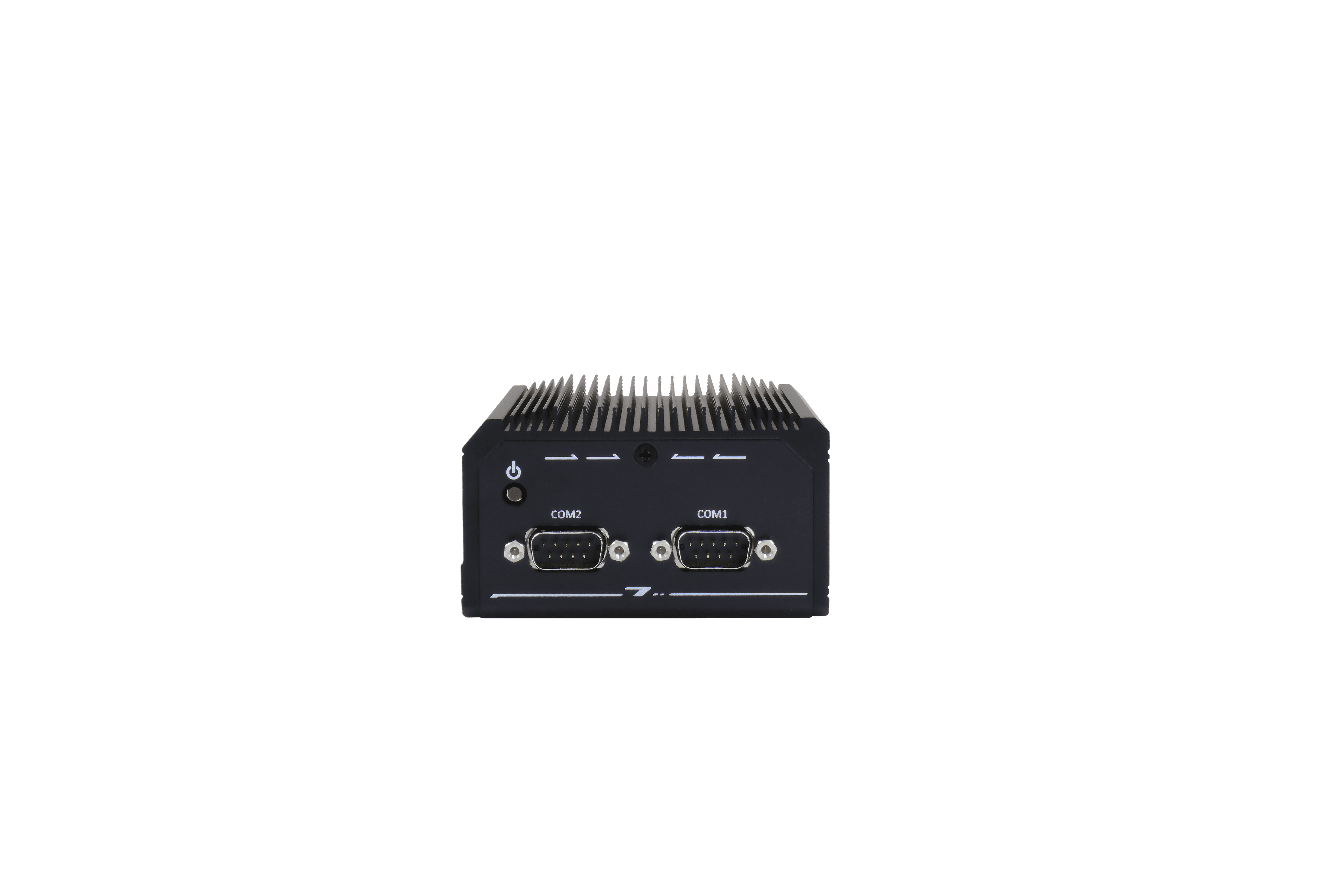

| Serial ports | 1x software-configurable RS-232/422/485 (COM1), plus 3x RS-232 or 1x isolated RS-422/485 (COM2-4, model dependent) |
| Isolated DI/O | Optional 4-ch isolated DI, 4-ch isolated DO |
| Storage | 1x M.2 2280 M key (SATA) |
| Expansion | 1x M.2 3042/3052 B key (4G/5G with SIM) + 1x M.2 2230 E key (WiFi 5/6) — mini-PCIe on POC-40+ |
| Power input | 12-20V DC input, optional ignition power control |
| Operating temperature | -25°C to 70°C (POC-40); -25°C to 60°C (POC-40+) |
| Dimensions | 52mm (W) x 89mm (D) x 112mm (H), 0.6kg |

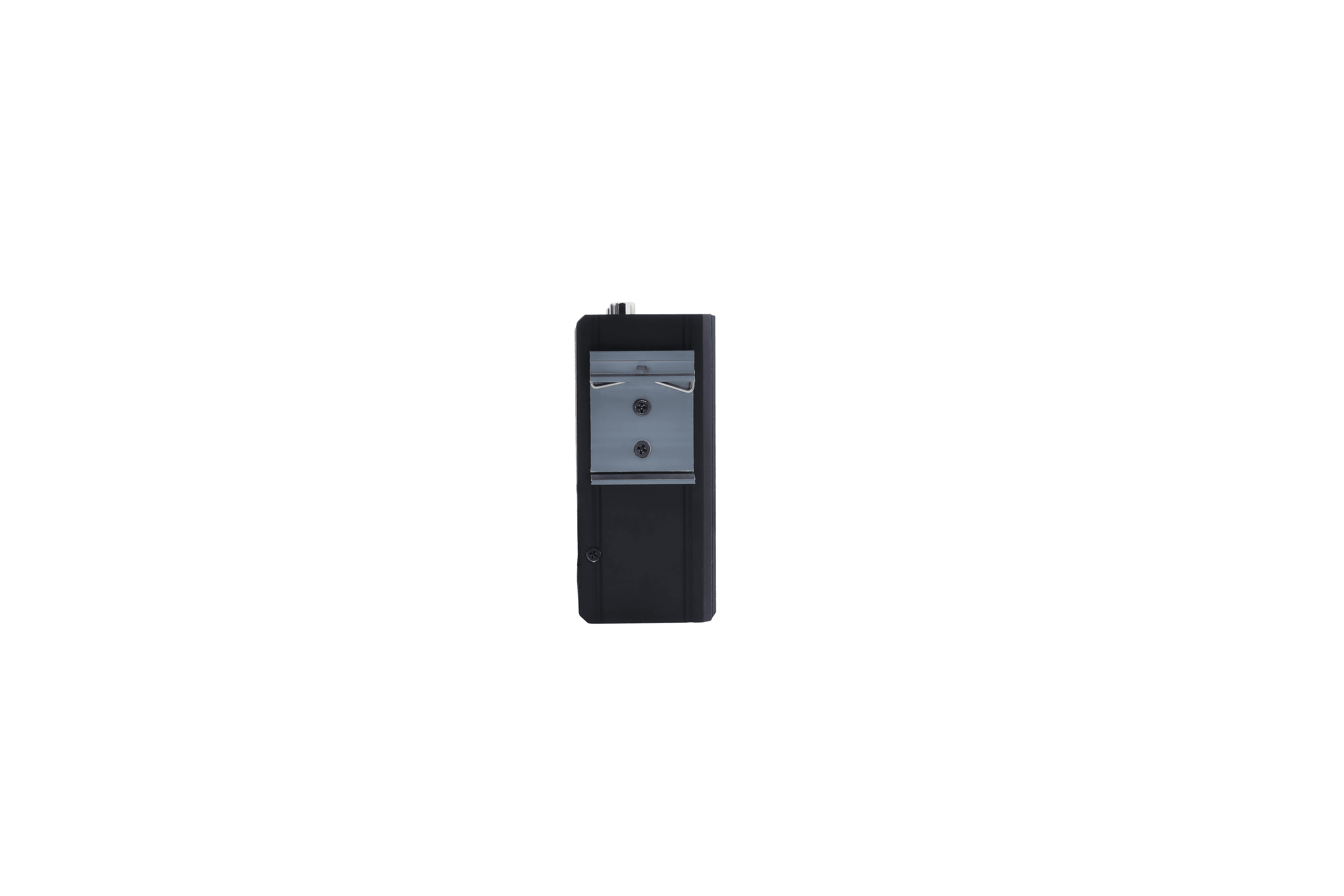

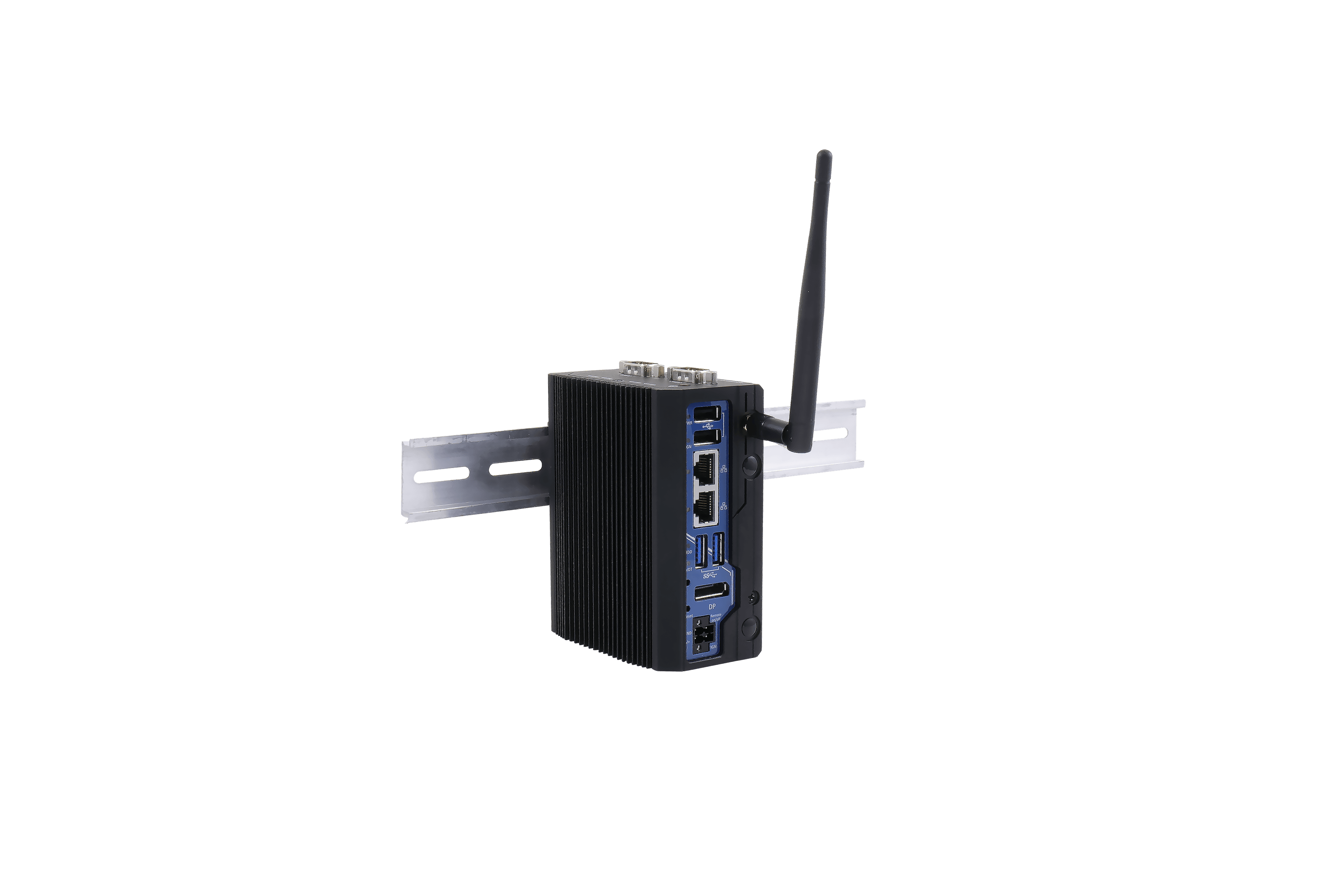

| Mounting | DIN-rail mount (standard) or wall-mount (optional) |
| Certifications | CE/FCC Class A, MIL-STD-810G shock & vibration |
Specifications shown are for the base/reference configuration and are subject to change without notice per the manufacturer. Request a quote to confirm exact configuration, pricing, and lead time.
