POC Series — Fanless Computers

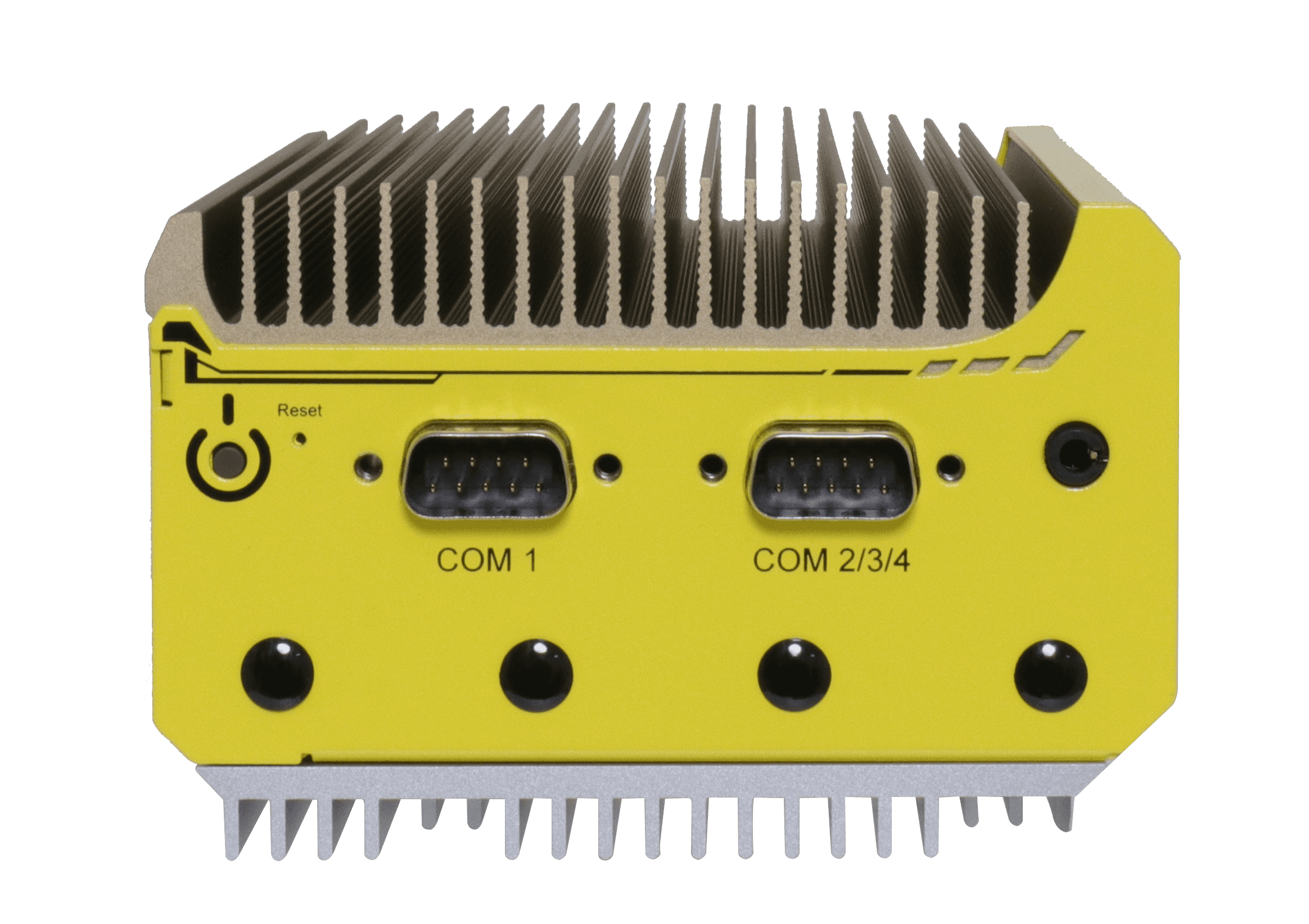

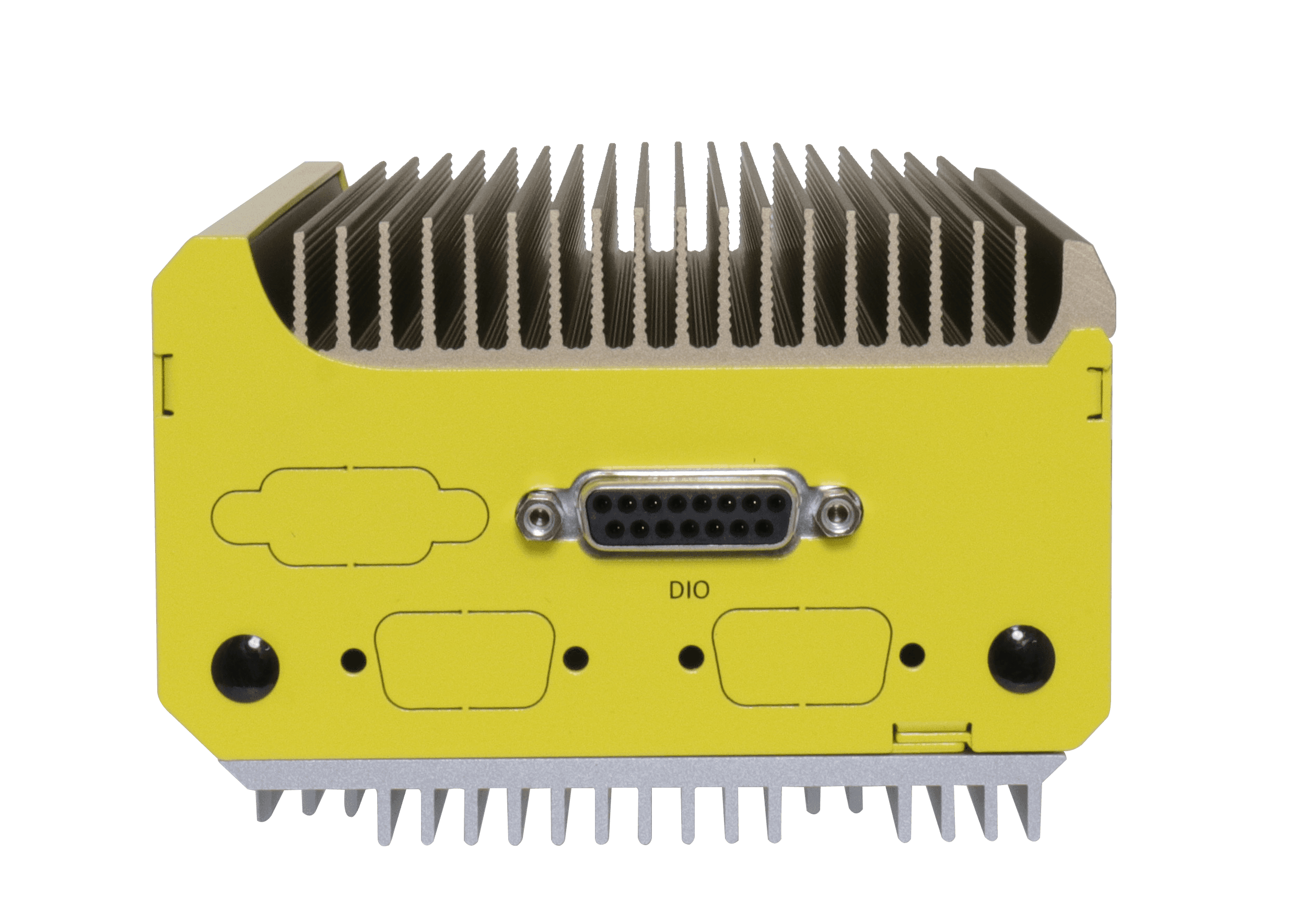

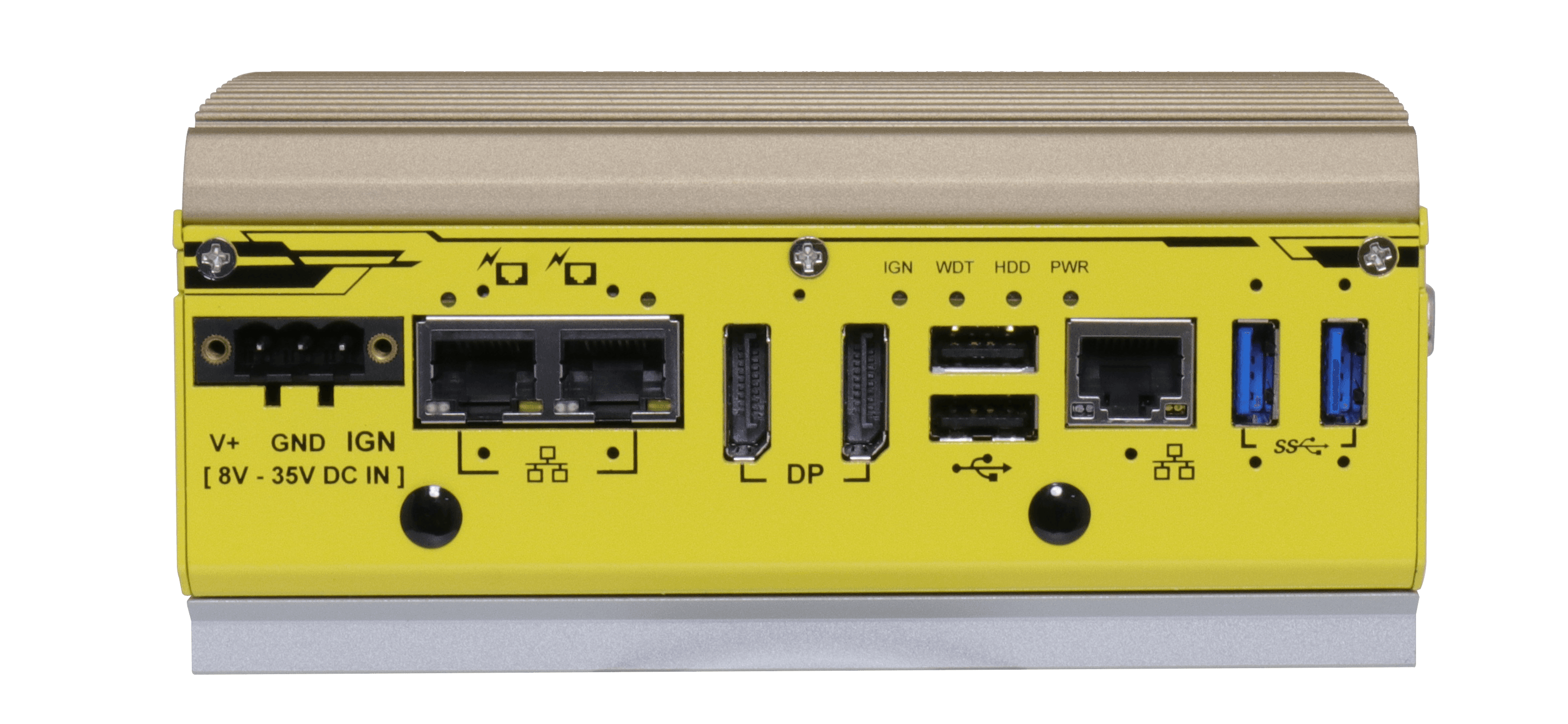

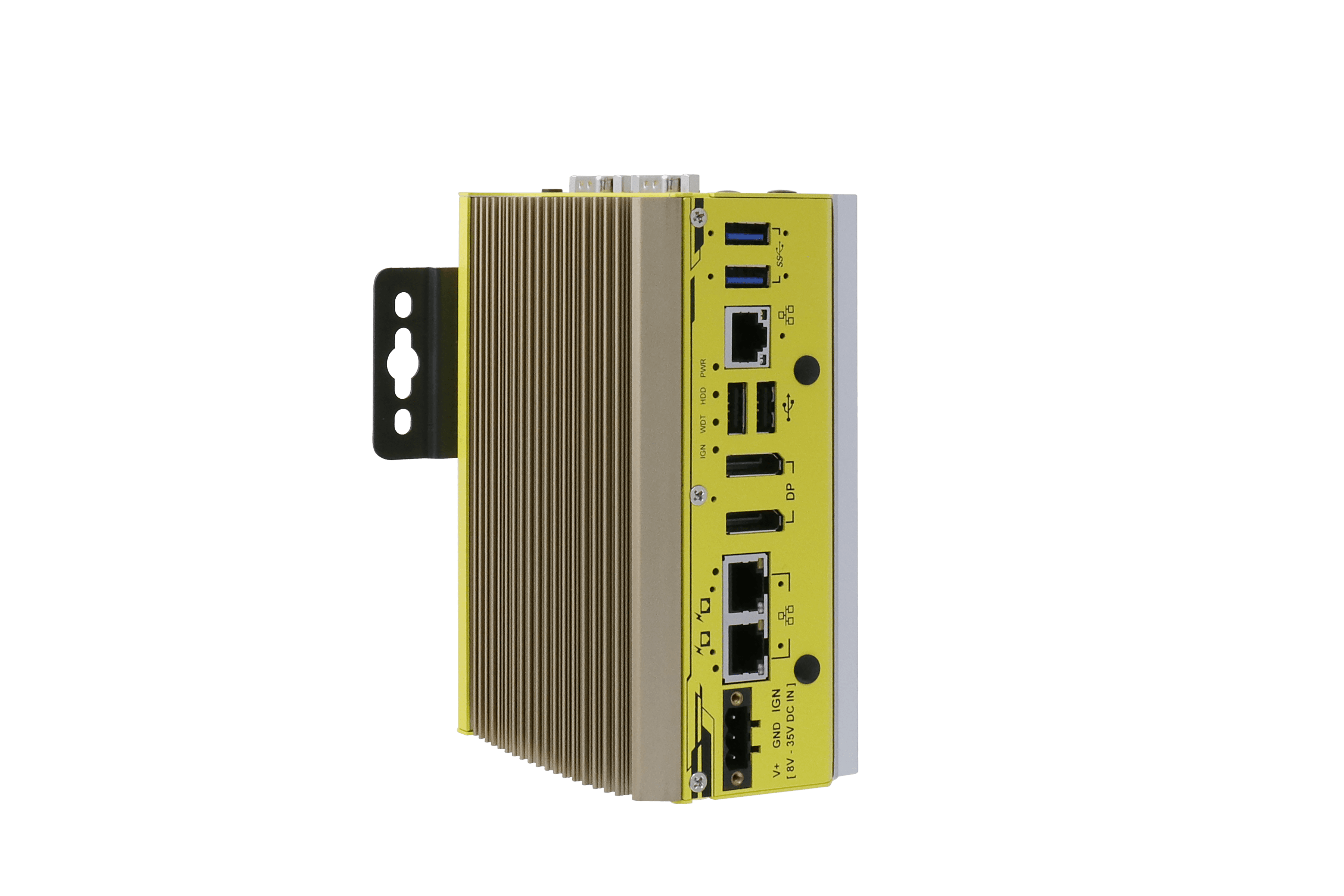

POC-451VTC
Ultra-compact in-vehicle computer with 2.5GbE PoE+
An E-Mark-certified in-vehicle computer built for mobile gateway, mobile surveillance, and passenger information systems — three 2.5GbE ports (two with PoE+) power and connect IP cameras directly, while ignition-aware power control handles clean shutdown when a vehicle's engine stops. Also available as POC-351VTC, the previous-generation Atom E3950 model.
Specifications
| Processor | Intel Elkhart Lake Atom x6425E quad-core 2.0/3.0GHz, 12W |
|---|---|
| Graphics | Integrated Intel UHD Graphics |
| Memory | Up to 32GB DDR4-3200 (1x SODIMM) |
| Ethernet | 3x 2.5GBASE-T (Intel I225); ports #2 and #3 support 802.3at PoE+ |
| USB | 2x USB 3.1 Gen1, 2x USB 2.0 |
| Video output | 2x DisplayPort, up to 4096x2160 @ 60Hz |
| Serial ports | 1x software-configurable RS-232/422/485 (COM1), 3x RS-232 or 1x RS-422/485 (COM2-4) |
| Isolated DI/O | 4-ch isolated DI, 4-ch isolated DO |
| Storage | 2x M.2 2280 M key (SATA SSD) |
| Expansion | 2x M.2 2230 E key (WiFi/edge TPU), 1x M.2 2242/3052 B key (4G/5G, dual SIM), 1x mini-PCIe (USB2) |
| Power input | 8-35V DC input with built-in ignition power control |
| Operating temperature | -40°C to 70°C |
| Dimensions | 153mm (W) x 108mm (D) x 72mm (H), 1.4kg |
| Mounting | Vertical wall-mount (standard) or DIN-rail (optional) |
| Certifications | E-Mark, CE/FCC Class A, MIL-STD-810G shock & vibration (conduction-cooled M.2/mPCIe heatsink) |
Specifications shown are for the base/reference configuration and are subject to change without notice per the manufacturer. Request a quote to confirm exact configuration, pricing, and lead time.
